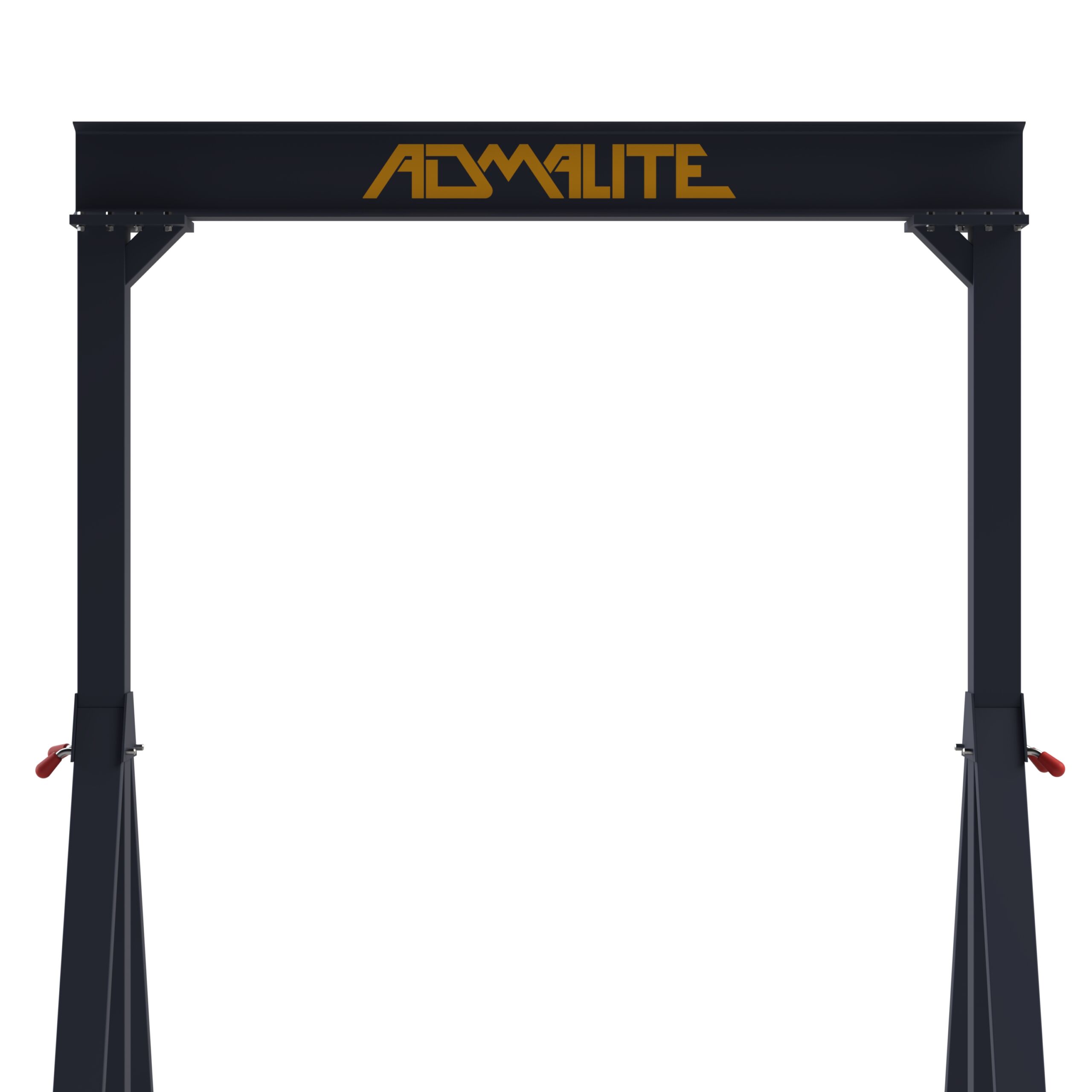

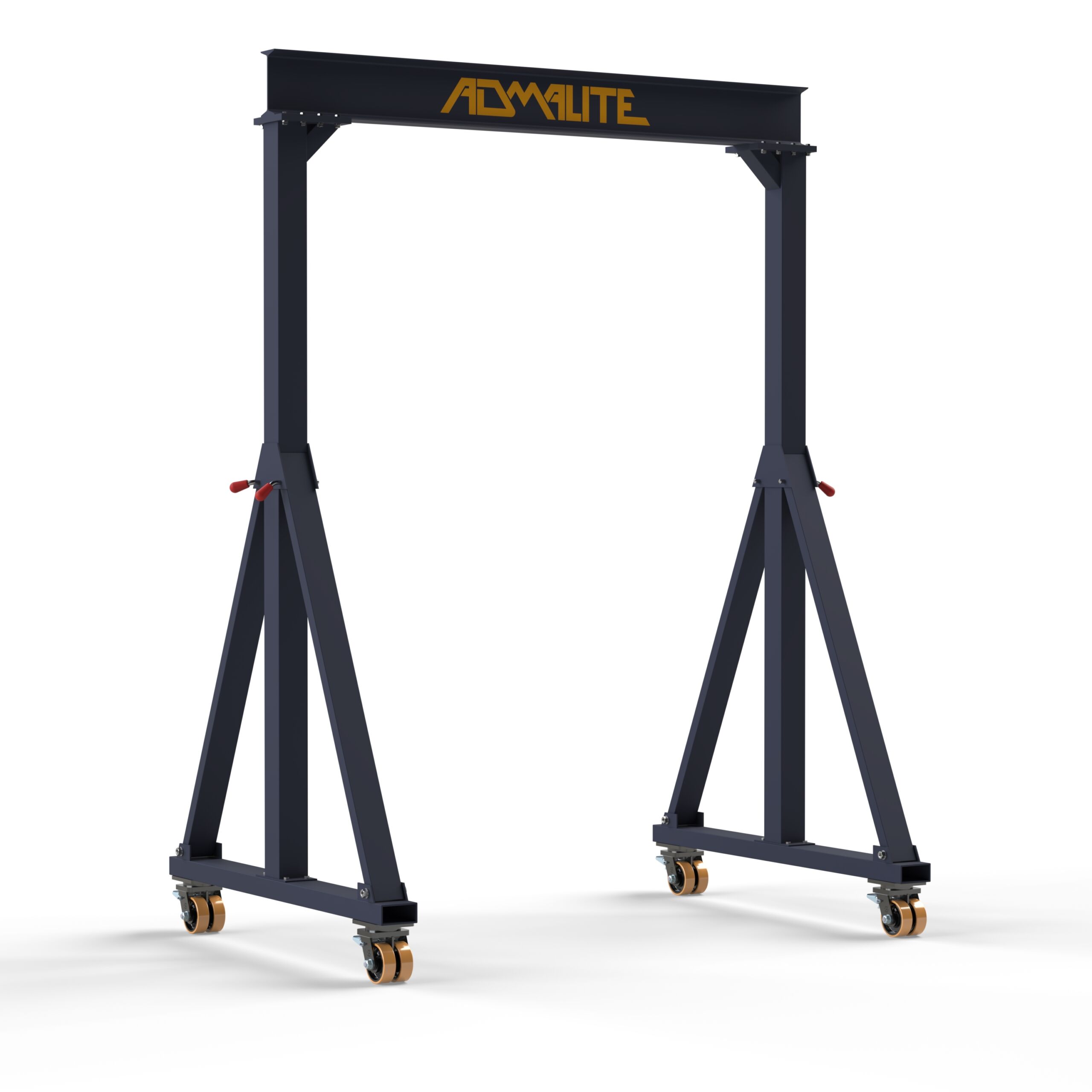

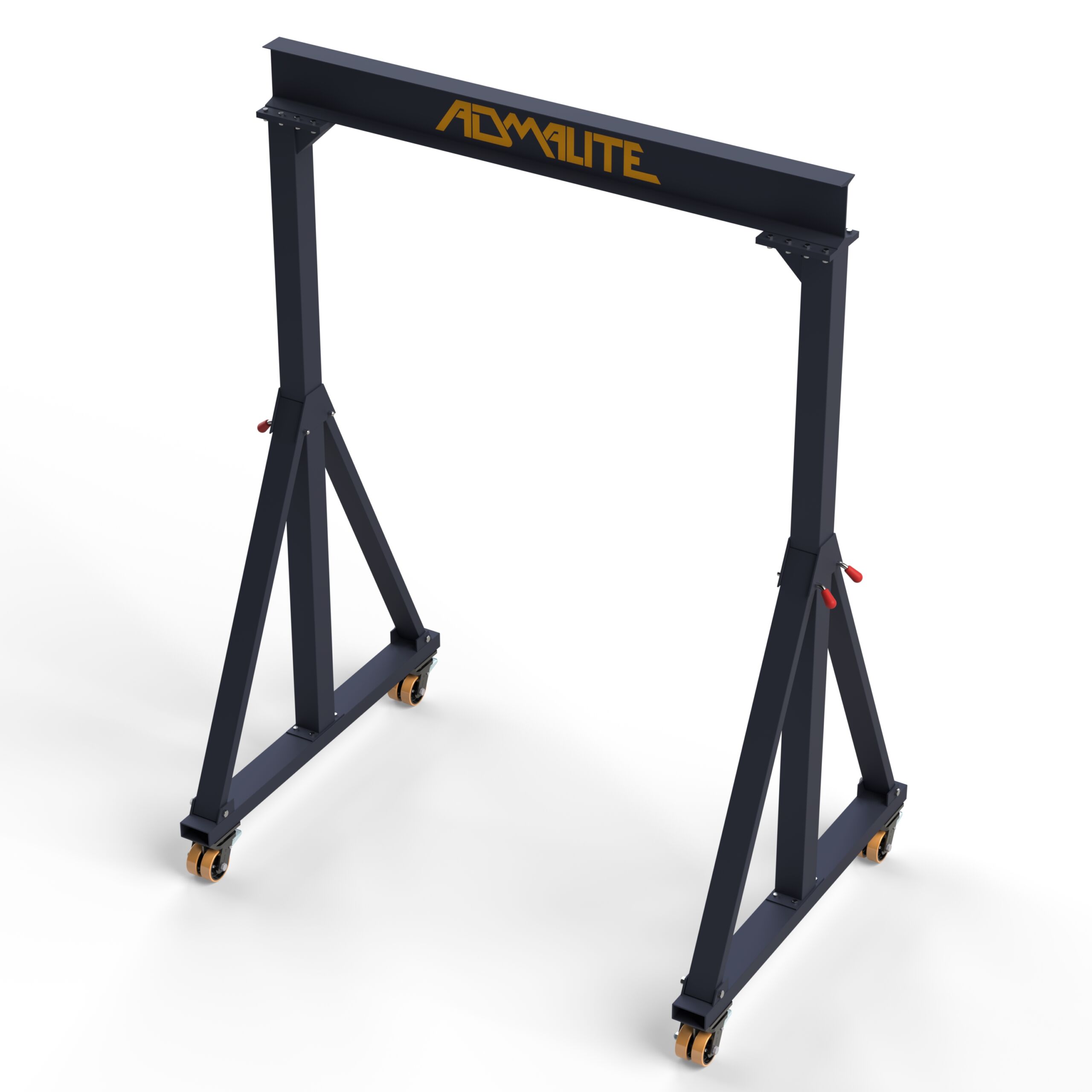

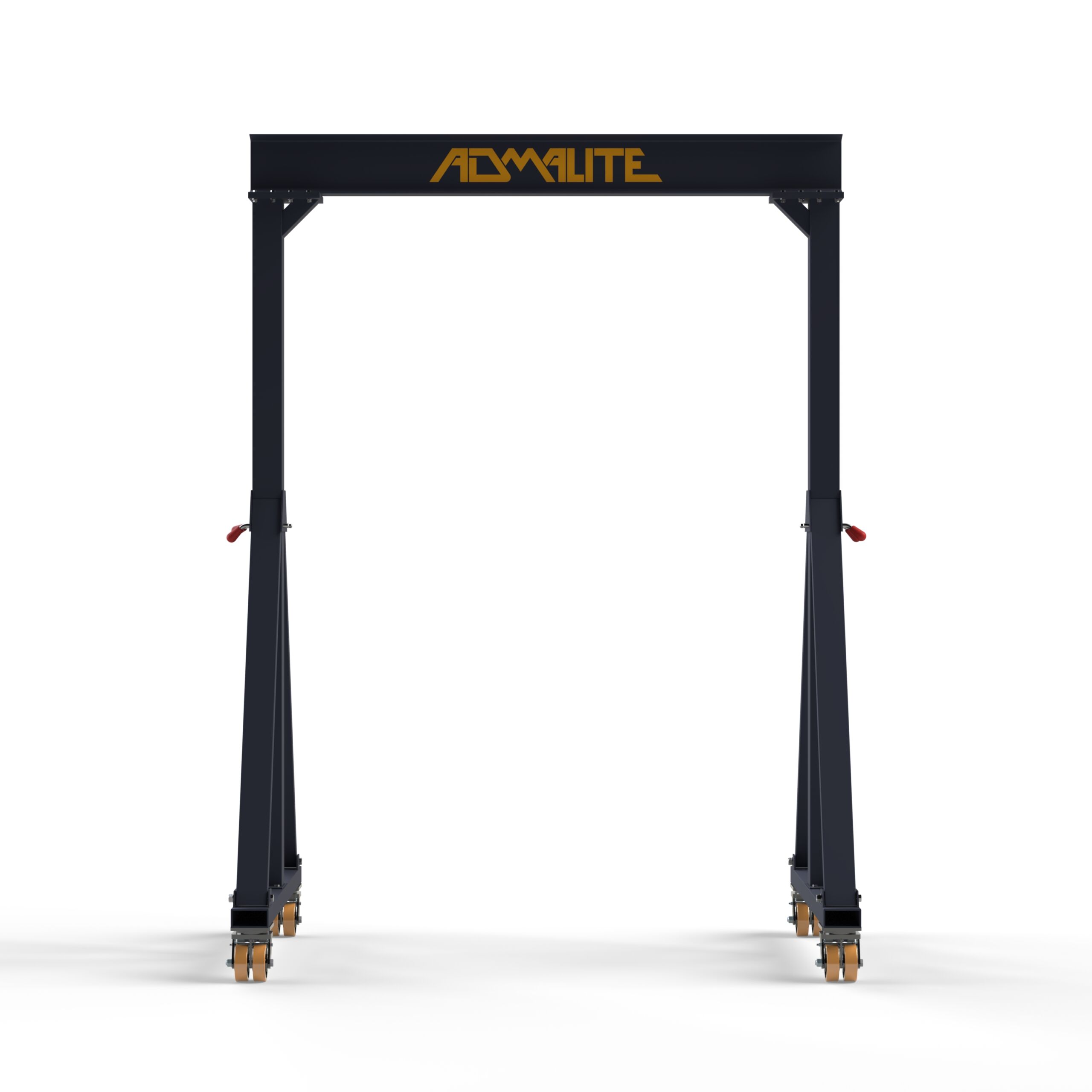

3 Ton Fixed Height Portable Steel Gantry Crane

SKU: ADGC-6000

$4,820.00$6,850.00

10 Sold in the last 30 Days

On Backorder, ships in 15 Days via Freight

  • Sturdy Square Tubing and Channel Base: Ensures stability under load and during transport within your facility.
  • Customizable Height and Span: Easily tailored to support different spans and heights, maximizing its utility in numerous situations.
  • Collapsible Design: Folds down for convenient storage, preserving valuable workspace when not in active use.
  • Lead Time: 1-3 weeks
  • Material: Steel
  • Portable Gantry Crane
  • Capacity: 4400lb.
  • Height: 8ft., 10ft., 12ft.
  • SPAN: 8ft., 10ft., 12ft., 15ft., 20ft.
  • HUB: 10ft., 12ft., 15ft.
  • Warranty: 3 Year Warranty
  • Material: Steel

3 Ton Fixed Height Portable Steel Gantry Crane Description

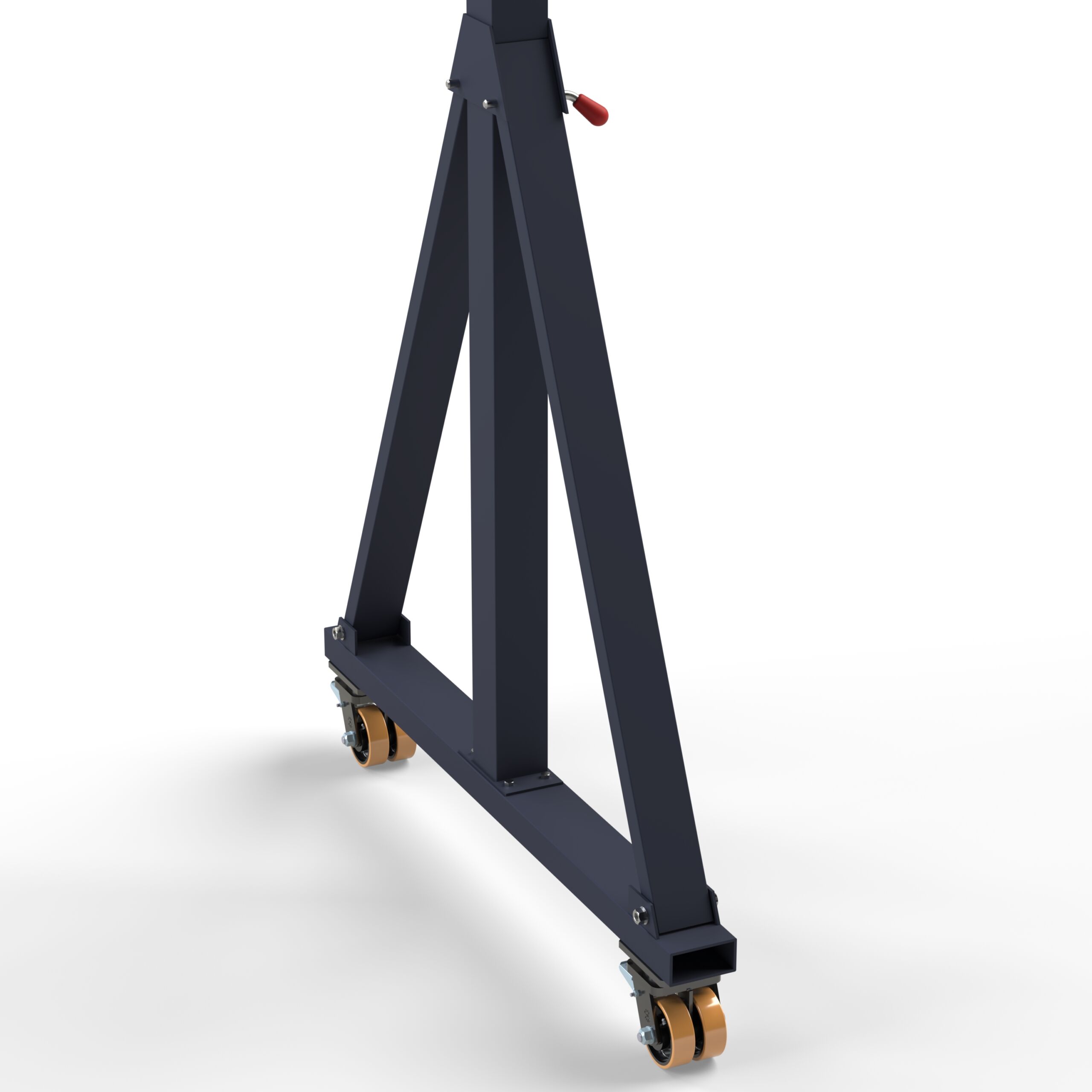

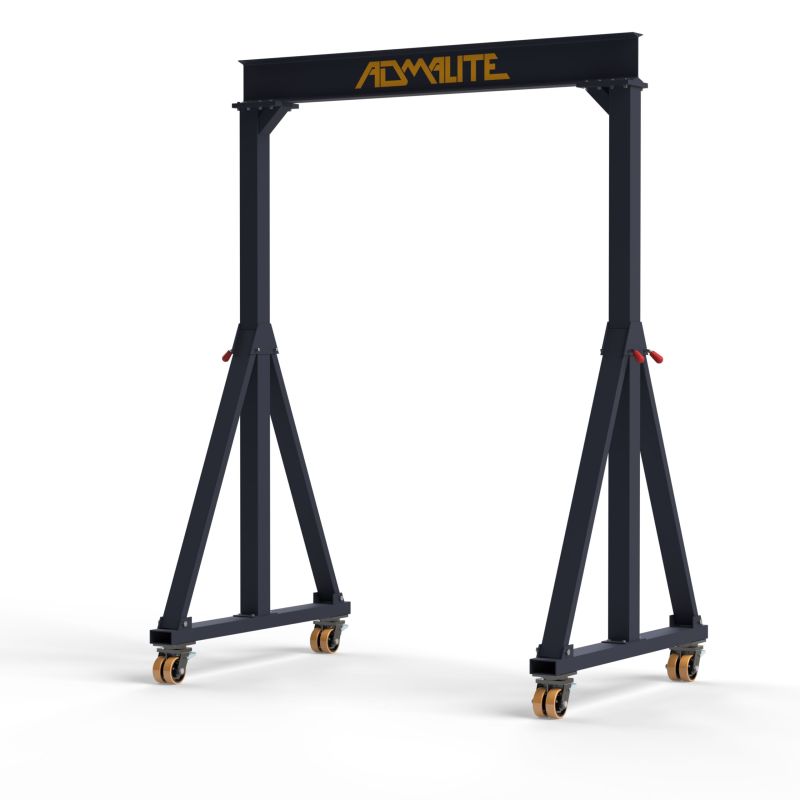

The Admalite 3 Ton Portable Steel Gantry Crane, designed and constructed in the USA, represents a significant advancement in safe and efficient material handling across diverse environments. This crane, supporting up to 3 tons or 6600lb, features square tubing uprights and a robust channel base. It includes heavy-duty polymer casters that protect floor surfaces while ensuring easy mobility. Each caster also has a locking brake to enhance stability when under load.

Engineers at Admalite have equipped the Fixed Height Steel Gantry Crane to operate efficiently with both powered and manual hoists. This versatility makes the crane ideal for both permanent and temporary setups, although forklift assistance is necessary during the initial assembly.

This 3 ton gantry crane showcases exceptional craftsmanship and engineering expertise, with a focus on meeting the stringent safety standards required in heavy-duty lifting operations. The specifications are as follows:

  • Rated Load Capacity: 3 tons – 6600lb.
  • Minimum Hub Height: 10 feet; Maximum Hub Height: 15 feet
  • Span: 8 – 20 ft.
  • I-Beam Depth: 10 – 12 in.
  • Trolley Travel: 6′-5″ – 18′-5.5″
  • Weight: 450lb. – 1900lb.

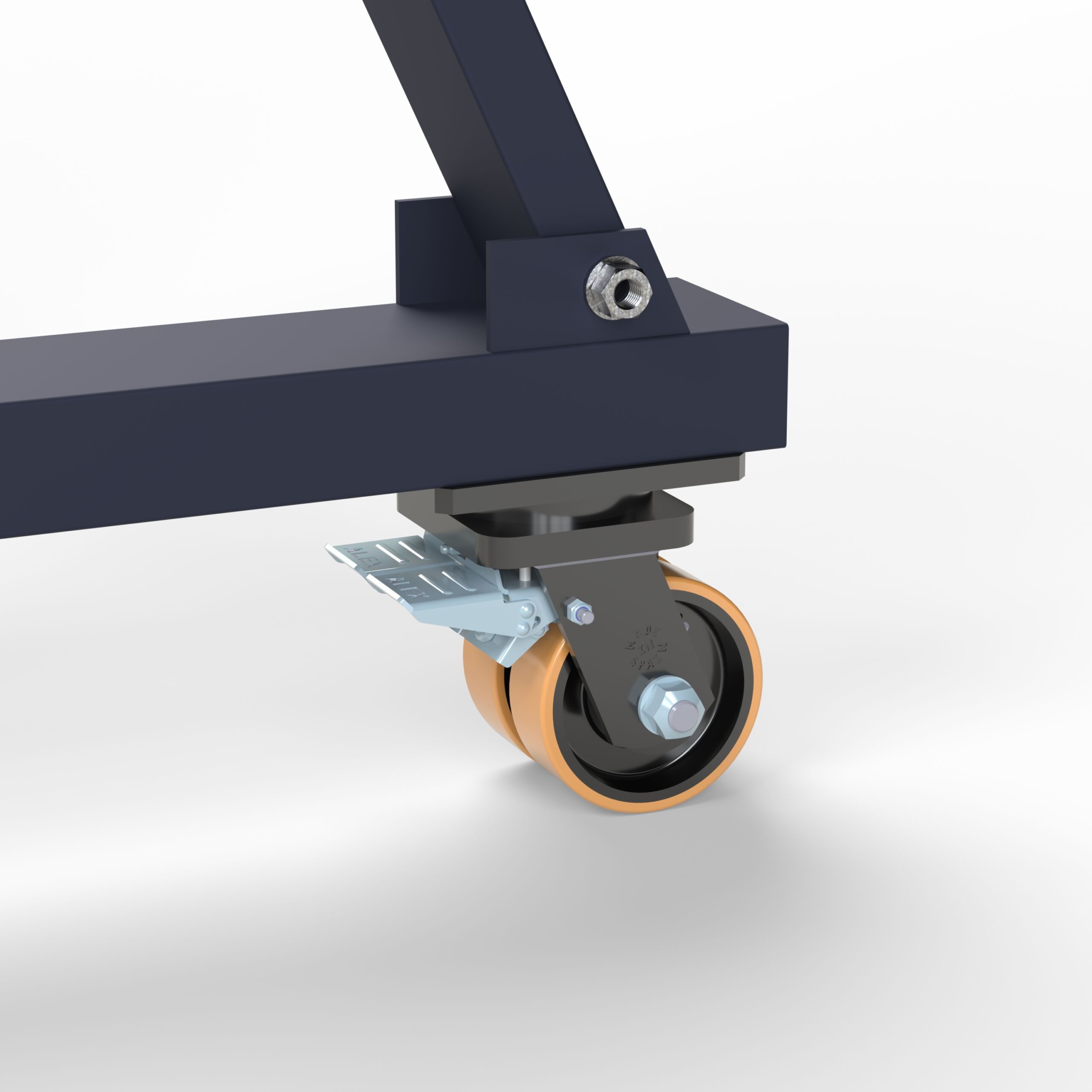

  • Equipped with four standard steel center swivel casters with brakes.
  • Factor of Safety (FOS): 4:1

Admalite offers various options and accessories to enhance the utility of the 3 ton gantry crane, including:

  • Tight Wire Kit (Festooning/”Tagline”) to keep cables organized and out of the way.
  • Swivel Locks to secure the crane’s position during operation.
  • Wheel Locks to provide additional stability by preventing unwanted movement.
  • Rigid or ‘V’ Groove Casters to offer mobility choices suited to different floor conditions.
  • Hoist & Trolley Packages to deliver complete lifting solutions tailored to specific needs.
  • Motorization to automate movement and reduce manual effort.
  • Aluminum Construction as a lightweight option that does not compromise strength.

Our gantry cranes, including this 3 ton model, are designed with robustness and reliability at their core, ensuring they meet and exceed the expected safety standards. For more information on the usage and safety of gantry cranes, please read our Gantry Cranes by Admalite article. To explore our full range of gantry crane offerings, visit our gantry cranes category section.

Please note: The Factor of Safety (FOS) is calculated based on the crane’s rated load in typical operating conditions with a static load centered on the I-beam, perpendicular to the ground. This calculation does not account for all potential loading scenarios or misuse. We strongly advise users to adhere strictly to operational guidelines and consult an engineer for high-risk or unusual conditions.

Frequent asked questions

What’s the difference between a crane and a gantry?2024-04-27T02:44:36-04:00

A crane refers to the entire lifting mechanism, including boom, hoist, and other components. A gantry specifically refers to the structure that supports the crane, typically used to describe the framework in gantry crane systems.

How much do gantry cranes cost?2024-04-27T02:43:54-04:00

The cost varies based on capacity, span, and customizations. Admalite gantry cranes offer competitive pricing with detailed quotes available upon request, ensuring transparency and suitability for your budget and needs.

What are the disadvantages of gantry cranes?2024-04-27T02:43:18-04:00

While gantry cranes are incredibly versatile, they can be less ideal for operations that require high speeds or extensive vertical lifting because they generally operate at lower speeds and have height restrictions.

What is the difference between an overhead travelling crane and a gantry crane?2024-04-27T02:42:41-04:00

The main difference lies in their structure and mobility. Overhead travelling cranes are mounted on elevated runways and move along two rails. In contrast, Admalite gantry cranes are self-supporting and can be moved around on wheels or along a track system.

Why must a crane driver never drag a load?2024-04-27T01:56:41-04:00

Dragging a load risks destabilizing the crane, leading to potential accidents. Admalite’s training emphasizes correct handling techniques to prevent such hazards.

Do you need training to use a gantry crane?2024-04-27T01:56:17-04:00

Yes, comprehensive training is mandatory for operating any gantry crane safely. Admalite ensures that all operators are proficiently trained and meet or exceed OSHA standards.

Can you move a gantry crane while loaded?2024-04-27T01:55:56-04:00

It is possible but not advisable to move a gantry crane while loaded due to safety risks. Admalite recommends following operational guidelines and safety protocols strictly.

What are the advantages of a gantry crane?2024-04-27T01:55:37-04:00

Admalite gantry cranes offer exceptional portability, adaptability to varied environments, and are capable of lifting substantial loads with ease, enhancing operational efficiency in numerous industrial applications.

What is a gantry on a crane?2024-04-27T01:55:17-04:00

The gantry on a crane is the supportive structure that allows the crane to lift and transport heavy materials across the work area.
